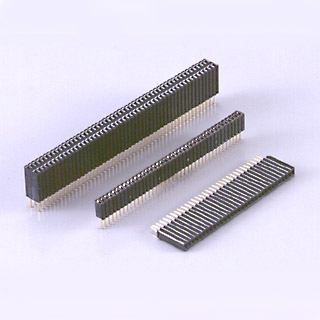

PCB SOCKET 1.27 x 2.54mm (0.050*0.100")


Specification :
 Contact Resistance : 30m£[Max. At DC 100mA
 Insulator Resistance : 1000M£[Min. At DC 500V
 Current Rating : 1 AMP
Dielectric Withstanding :
 Voltage : AC 500v For 1 Minute
 Operating Temperature : -55 ¢XC ~ + 105 ¢XC
 Contact : Phosphor Brass
 Housing : PBT & 30% Glass Fiber (UL 94V-0)
