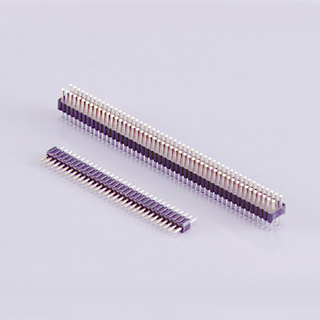

PIN HEADER 1.27*2.54MM (0.050*0.100")
Specification :
Contact Resistance :
20m£[Max.
Insulator Resistance :
1000M£[Min. at DC 500V
Current Rating :
1 AMP
Dielectric Withstanding :
Voltage :
AC 500v
Operating Temperature :
-55 ¢XC ~ + 105 ¢XC
Contact :
Phosphor Brass
Housing :
PBT & 30% Glass Fiber (UL 94V-0)
