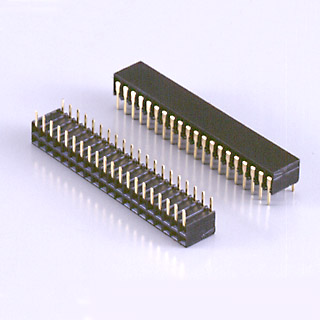

FEMALE HEADER 2.54mm (0.100")
Specification :
Contact Resistance :
30m£[Max. At DC 100mA
Insulator Resistance :
1000M£[Min. At DC 500V
Current Rating :
1 AMP
Dielectric Withstanding :
Voltage :
AC 1000V For 1 Minute
Operating Temperature :
-55 ¢XC ~ + 105 ¢XC
Contact :
Phosphor Bronze
Housing :
PBT & 30% Glass Fiber (UL 94V-0)
