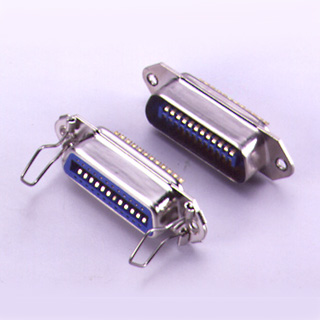

CENTRONIC CONNECTOR SOLDER TYPE

Material :
 Insulator : PBT+30% Glass Fiber (UL94V-0)
 Contact : Phosphor Bronze
 Contact Plated : Gold Over Nickel
 Shell : Steel
  Zinc Plated Or Tin Plated
Specification :
 Current Rating : 5 Amp.
 Dielectric Strength : 1000V For 1 Minute
 Insulator Resistance : 1000M£[ Min. At 500V DC
 Temperature : -55 ¢XC ~ + 105 ¢XC
Features :
