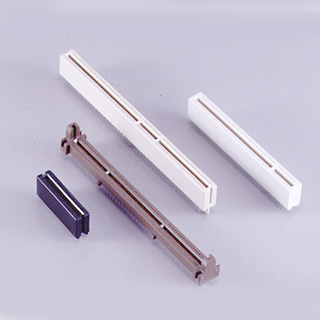

EISA CONNECTORS


:
  EISA Connector Is A Multi-Contact Edge Type Assembly With Solder Type Contacts. It Is Intended For Use With Printed Wiring Boards Having Gold Plated Contact Fingers On Either .050 Or .100 Inch Centerlines.
Material And Finish :
 Insulator : Glass-Filled Thermoplastic UL94V-0
 Contact : Copper Alloy
 Finish : Contact Area : Gold plated
                Terminal Area : Tin Plated
Performance Characteristics :
 Contact Resistance : Initial (Max) : 20 m£[Max
                                 End Of Life : 30m£[
 Current Rating : 3 Amps / 1 Amp
 Withstanding Voltage : 500V
 Insulation Resistance : 1000 M£[ Min 100M£[
 Durability : 100 Cycle
