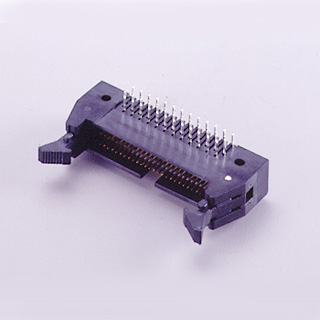

HD HEARDER, R/A 1.27mm


Specification :
 Contact Resistance : 30m£[Max. At DC 100mA
 Insulator Resistance : 1000M£[Min. At DC 500V
 Current Rating : 0.5 AMP
Dielectric Withstanding :
 Voltage : AC 300V For 1 Minute
 Operating Temperature : -55 ¢XC ~ + 105 ¢XC
 Contact : Brass
 Housing : PBT & 30% Glass Fiber (UL 94V-0)
