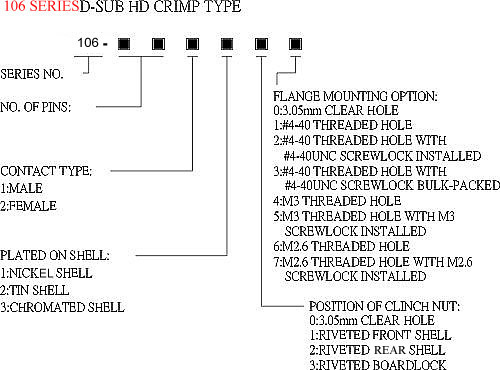

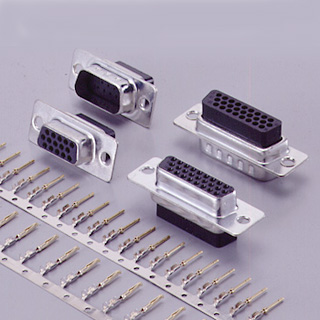

D-SUB HD CRIMP TYPE


Specification :
 Contact Resistance : 30m£[Max. At DC 100mA
 Insulator Resistance : 1000M£[Min. At DC 500V
 Current Rating : 3 AMP
Dielectric Withstanding :
 Voltage : AC 1000V For 1 Minute
 Operating Temperature : -55¢XC ~ + 105¢XC
 Contact : Brass Or Phosphor Bronze
 Housing : PBT & 30% Glass Fiber (UL 94V-0)
